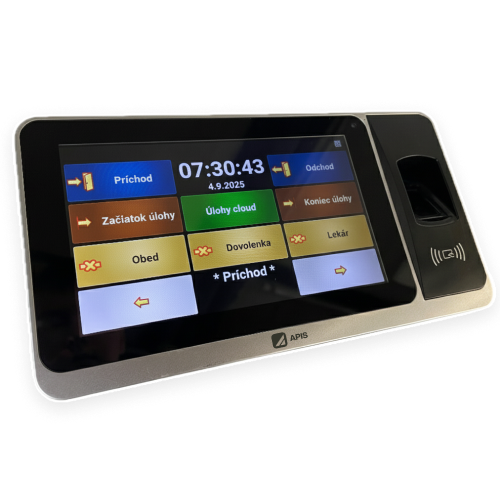

Multifunction terminal
ZPad Plus
Attendance
Hardware equipment
Top-quality hardware ensures fast and reliable operation of the webBox system.
Multifunction terminal
Operating system
Android 12.0
Camera
1080P dual HDR
Display
8" IPS touchscreen
Card reader
RFID / MIFARE
WiFi
2.4G / 5G (802.11 a/b/g/n/ac)
Bluetooth
Bluetooth 4.0
Weight
1.1 kg wall-mounted terminal
Dimensions
23*138*258 mm (L*D*H)
Interface
Ethernet
Adapter
12V/2A

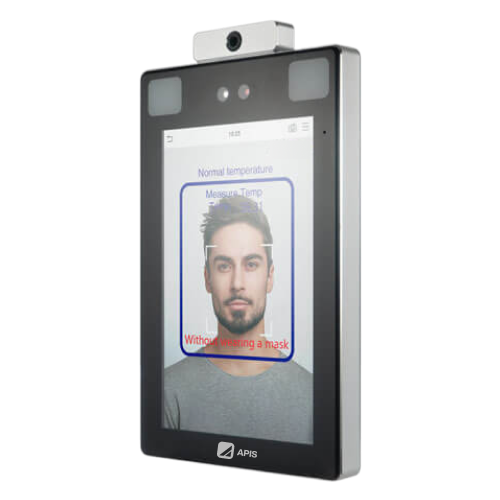

Face recognition terminal
ZKTeco ProFaceX
Access control
Face recognition terminal
Operating system
Android 10.0
Camera
Dual 2MP (WDR)
Display
8" IPS touchscreen
Identification
Face / card / PIN
Capacity
50,000 faces
Interface
Ethernet / Wiegand

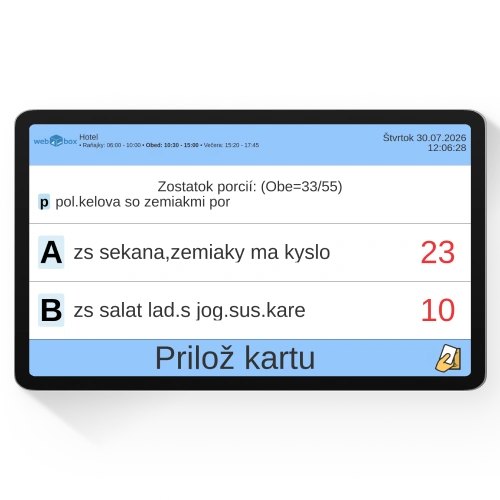

Serving terminal
webApetit
Canteen
QR code and card reader
ZKTeco QR600 Series
Access control
QR code and card reader
Code scanner
Dynamic QR, PDF417, Aztec
Card support
125kHz (ID) and 13.56MHz (IC)
Durability
IP65, rugged metal housing
Communication
Wiegand & RS485
Design
With or without keypad

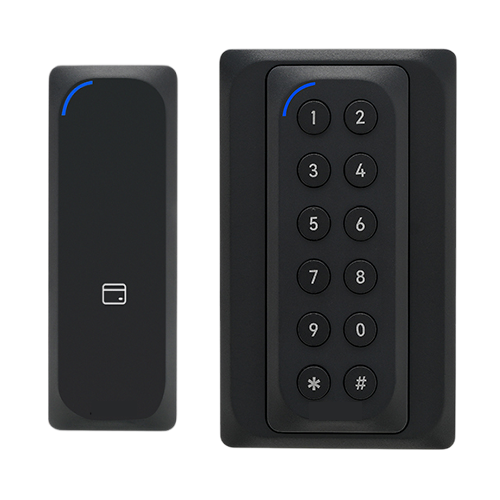

Access reader
ZKTeco KR900 Series
Access control
Access reader
Card support
25kHz (ID), 13.56MHz (IC)
Communication
Wiegand and RS485 (OSDP)
Durability
IP65 water resistance
Operating temperature
-20°C to 60°C
Security
Integrated tamper alarm
Design
ABS plastic for wall mounting

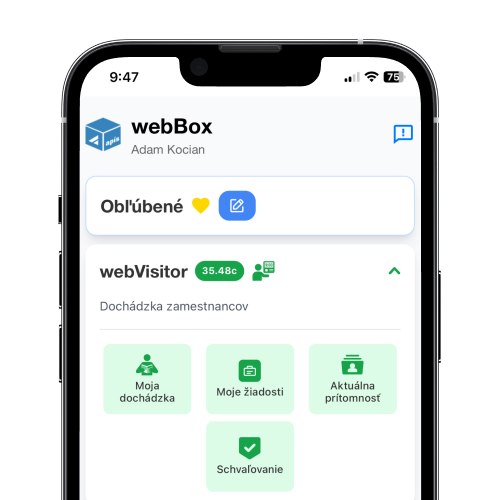

Mobile app
webReader for PC and mobile
Attendance
Canteen
Face recognition terminal
Aratek BA8300
Attendance
Visitors
Access control
Face recognition terminal
Display
8" color touchscreen
Identification methods
Face, RFID card, PIN and QR codes
Connectivity
TCP/IP, Wi-Fi and Wiegand
Durability
IP65 water and dust resistance

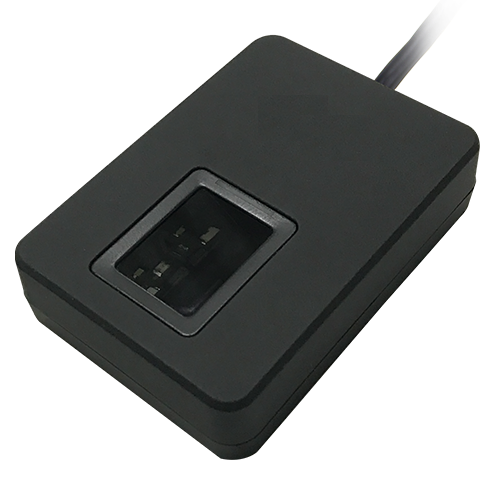

Desktop fingerprint reader
ZKTeco ZK9500
Desktop fingerprint reader
Sensor type
Biometric sensor (ZKFinger)
Image resolution
500 DPI
Sensing area
15.24 x 20.32 mm
Connection
USB 2.0 (Type A)
Dimensions
75.5 x 53.2 x 19 mm
Operating temperature
-20 °C to +50 °C
Power supply
USB (5V, 200mA)
Support
Windows PC, Android

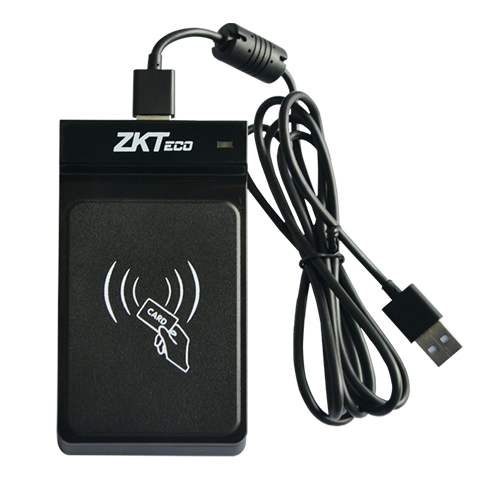

Desktop card reader
ZKTeco CR20 Series
Desktop card reader
Supported cards
EM, ID 125kHz, Mifare, Desfire 13.56MHz
Connection
USB 2.0
Power supply
5V DC (USB)
Reading range
up to 5 cm

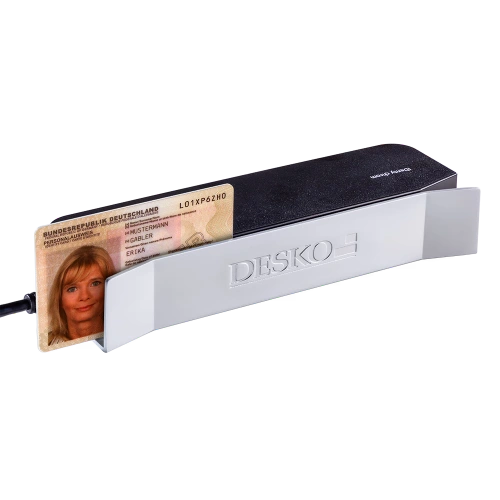

ID document reader Basic
DESKO IDenty chrom
Visitors
Access control
ID document reader Basic
Documents
Passports and ID cards
Reading standards (MRZ)
ID1, ID2 and ID3 (ICAO 9303 and ISO 1813)
Scanning method
Two-way slot
Connection and interface
USB 2.0 with a 1.8 m cable
Power supply
max. 300 mA
Dimensions
180 x 60 x 34 mm

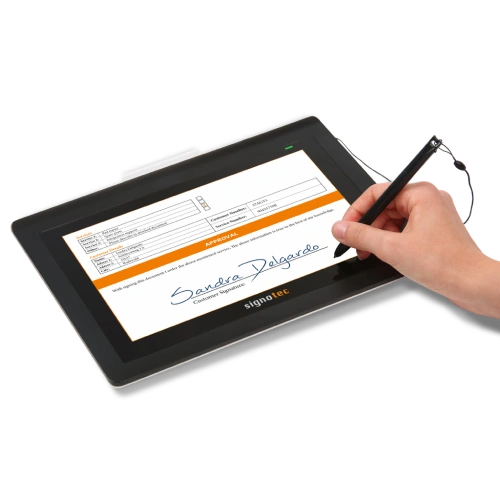

Signature pad Pro
signotec Delta
Access control
Signature pad Pro
Display
10.1" color LCD
Sensing technology
ERT (responds to the pen only)
Sensing precision
2,048 pressure levels
Resolution
1280 x 800 pixels
Signing area
217 x 136 mm
Connection
USB / optional Ethernet
Dimensions
280 x 205
Weight
830 g

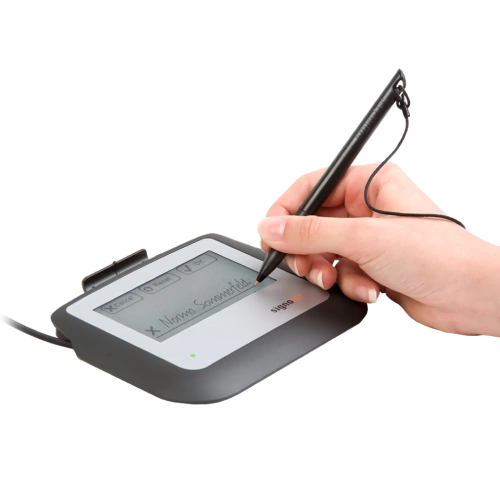

Signature pad Basic
signotec Sigma
Access control
Signature pad Basic
Display
4.5" monochrome LCD
Sensing technology
RTP (resistive touch panel)
Sensing precision
1,024 pressure levels
Connection
USB (integrated 2 m cable)
Resolution
320 x 160 pixels
Signing area
91 x 45 mm
Security
RSA encryption directly in the pad
Pen
Battery-free pen with a spring-loaded tip
Dimensions
160 x 120 x 10 mm
Weight
230 g

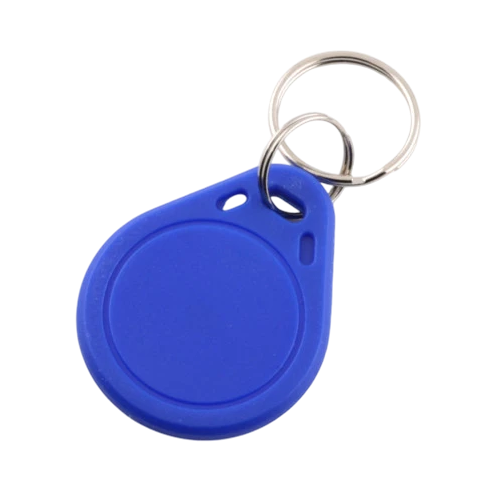

Access tag
EM / Mifare key fob
Access tag
Frequency
125 kHz (EM), 13.56 MHz (Mifare)
Credential type
Contactless RFID tag
Design
ABS plastic with a key ring
Use
Employee identification

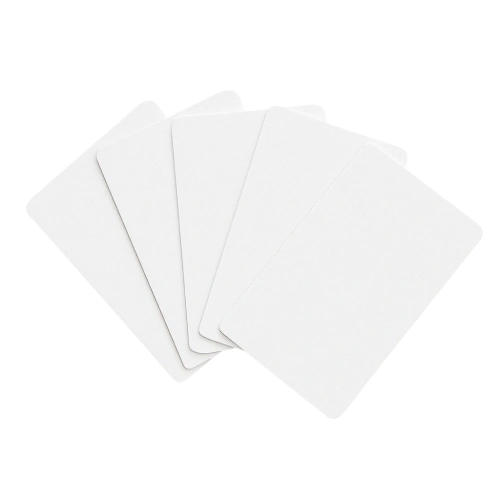

Access card
EM / Mifare card
Attendance
Access control
Access card
Frequency
125 kHz (EM), 13.56 MHz (Mifare)
Credential type
Contactless RFID card
Format and dimensions
Standard ISO card (85.5 x 54 mm)
Use
Identification for attendance and access control systems
Access control unit
ZKTeco C3 Plus Series
Access control
Access control unit
Number of doors
1, 2 or 4 doors
User capacity
100,000 users, cards and QR codes
Event capacity
500,000 records
Connectivity
RS-485 and 26/34/66 bit Wiegand support
Communication
TCP/IP
Hardware
CPU 1.0GHz, RAM 128MB
